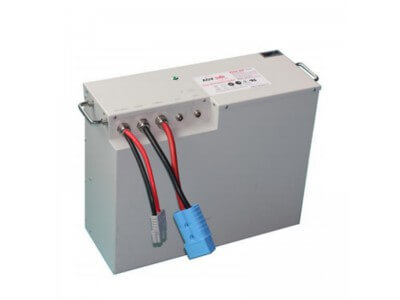

HAWKER鋰電池24V200AH霍克鋰電池EV24-200
Introduction
Hawker AGV SAFE EV series of power battery, is the international advanced level of lithium iron phosphate (LiFePO4) power battery system. With high energy density, long cycle life, excellent charge and discharge performance, good temperature performance, is a new generation of high security and high reliability of the green power supply.
This series of batteries is the use of the latest development of the battery management system (BMS), specifically for mobile mechanical equipment, online charging and wireless charging and design and production of power batteries, with advanced battery self-management, communication, alarm and short-term fast charge Complete function.
Product Features
● Excellent charge and discharge overvoltage and undervoltage protection
● provide analog output AO, SOC analog output 0 ~ 5V, user-friendly power monitoring
Note: SOC can only be used as a reference, can not be used as a decision.
● Provides a highly efficient passive equalization system
● Charge / discharge are all with short circuit insurance
● Panel LED power, system status display
● Rich interface, through the digital IO and 485 interface to achieve information exchange
● professional industrial design and material selection, sustainable work in the harsh industrial environment
● support high-power charge and discharge, to meet the needs of a variety of different industrial conditions
● wide temperature working environment conditions, -20 degrees -60 degrees
● small size
Dimensions specifications
|
Types |
Battery size Long*wide*high（mm） |
Charge continuous current |
Discharge continuous current |
|
EV24-40 |
315*237*165mm |
80A |
20A |
|
EV24-60 |
315*240*215mm 320*237*188mm 460*220*150mm |
120A |
30A |
|
EV24-80 |
355*330*215mm |
160A |
40A |
|
EV24-100 |
355*330*215mm |
200A |
50A |
|
EV24-120 |
400*275*245mm |
180A |
60A |
|
EV24-200 |
550*210*425mm |
200A |
100A |
|
EV48-30 |
345*238*200mm |
60A |
30A |
|
EV48-60 |
590*240*240mm |
120A |
30A |
|
EV48-80 |
585*345*230mm |
160A |
40A |
|
EV48-100 |
585*345*230mm |
200A |
50A |
|
EV48-160 |
605*435*255mm |
160A |
80A |
|
EV48-200 |
615*650*250mm |
160A |
100A |
|
EV48-250 |
605*290*480mm |
200A |
125A |
Performance specifications
|
project |
Features |
|
Overvoltage protection |
3.7V (single string) |
|
Undervoltage protection |
2.8V (single string) |
|
Charging parameters |
Maximum 2C lasts for 10 minutes, 1C continues |
|
Discharge parameters |
Up to 1C continuous |
|
Charge and discharge port form |
Charge and discharge |
|
fuse |
Have |
|
RS-485 communication |
Have |
|
Analog output AO |
Have |
|
Configurable DO output |
Have |
|
Power LED display |
Have |
|
Master switch |
Have |
|
Operating temperature |
-20℃~60℃ |
|
Storage temperature |
-20℃~70℃ |
|
Working humidity |
Relative humidity of 10% to 80%, no condensation |
|
cooling system |
Passive natural cooling |
|
Charger requirements |
Lithium iron phosphate battery charger |
|
Battery shell color |
Toyota White (customizable) |
